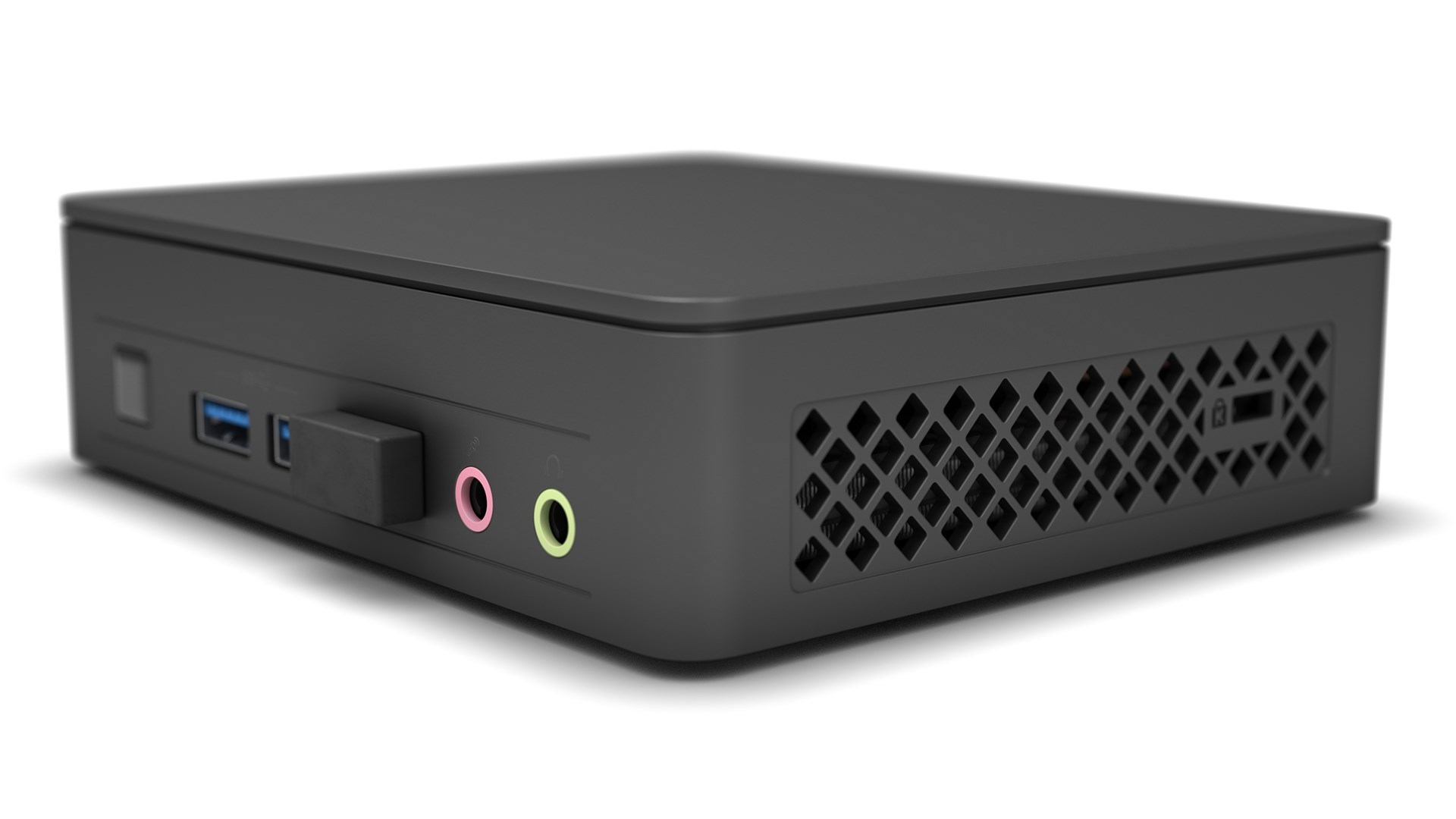

PC MINI INTEL NUCN4505 -NO CABLE

CPU Specifications
Total Cores 2
Total Threads 2
Processor Base Frequency 2.00 GHz
Memory & Storage
Included StorageOptional 64GB eMMC
Max Memory Size (dependent on memory type) 32 GB

1. of Memory Slots2
   Memory Types DDR4-2933 1.2V SO-DIMM
   Max # of Memory Channels 2
   ECC Memory Supported ? No
   Internal Drive Form FactorM.2 SSD
2. of Internal Drives Supported1
   M.2 Card Slot (storage) 1

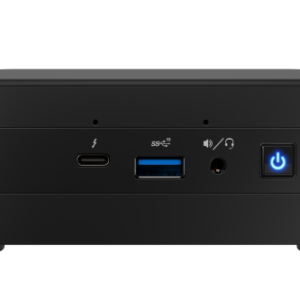

   I/O Specifications
   Graphics Output DP++/HDMI
3. of Displays Supported ?2
4. of USB Ports6
   USB Configuration2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0
   USB Revision 3.2 Gen 2 / 3.2 Gen 1 / 2.0
   Audio (back channel + front channel)1× 3.5mm stereo out jack, 1× 3.5mm microphone jack
   Integrated LAN 10/100/1000
   Wireless IncludedIntel® Wireless-AC 9462
   Bluetooth Version 5.1
   M.2 Card Slot (wireless) 1
   Expansion Options
   PCI Express Revision Gen 3
   Package Specifications
   TDP 10 W
   DC Input Voltage Supported19VDC
   Chassis Dimensions135×115x36mm
   Advanced Technologies
   Intel® HD Audio Technology Yes
   Security & Reliability
   Intel® Platform Trust Technology (Intel® PTT) Yes
   Intel® AES New Instructions Yes
