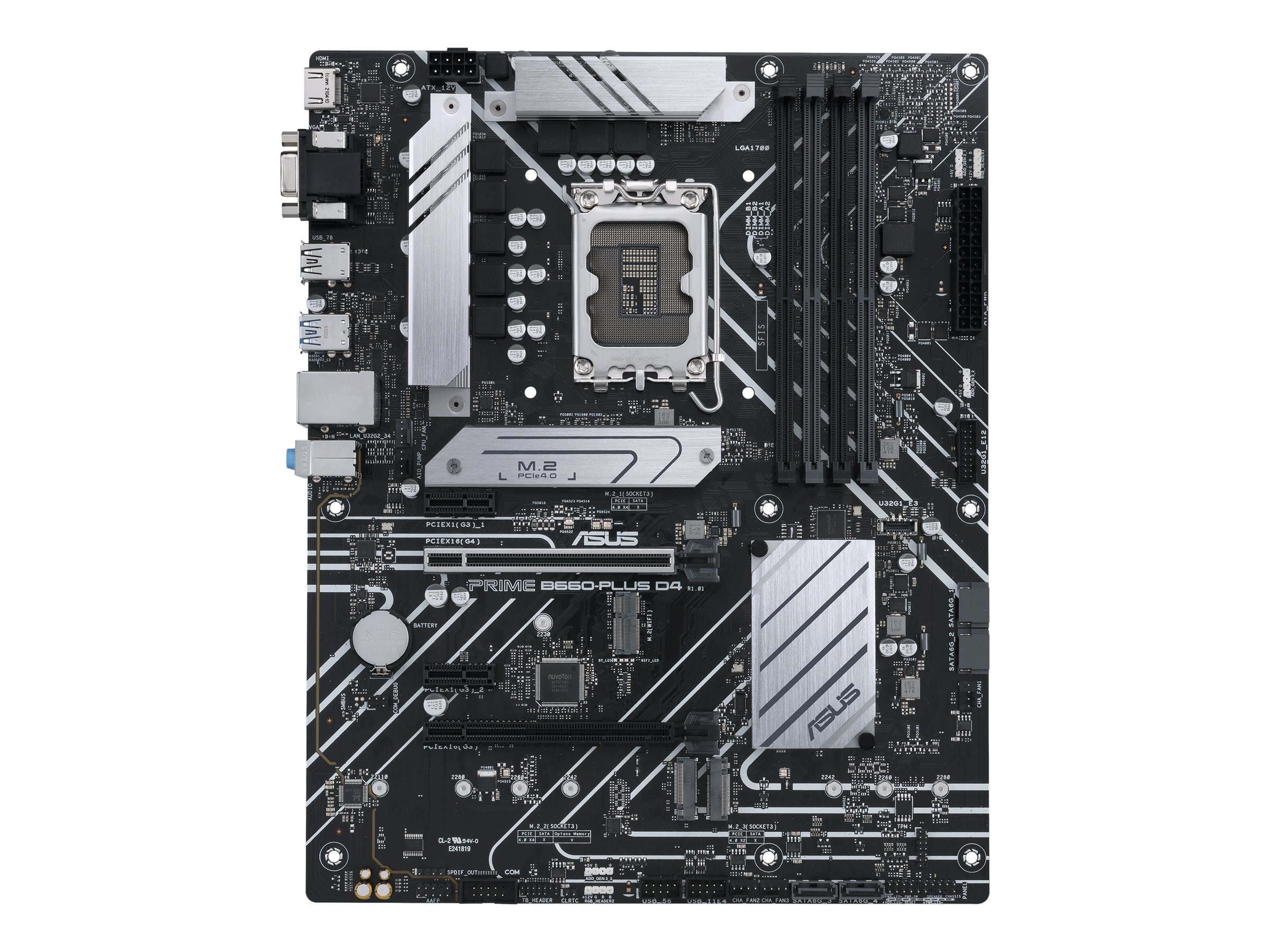

PLACA BASE 1700 ASUS PRIME B660-PLUS D4

MarcaAsus
Modelo90MB18X0-M1EAY0
Plataforma- ATX (30.5 cm x 24.4 cm)
Chipset- Intel® B660 Chipset
CPU
Soportados- Admite procesadores Intel® Core?, Pentium Gold y Celeron de 12ª generación
– Zócalo del procesador LGA1700
Memoria- 4 x DIMM, Max. 128GB, DDR4
– 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory
– Dual Channel Memory Architecture
– Supports Intel® Extreme Memory Profile (XMP)
– OptiMem
Slots Expansión
– 1 x PCIe 4.0 ×16 slot
– 1 x PCIe 3.0 ×16 slot (supports x4 mode)
– 2 x PCIe 3.0 ×1 slots
Gráficos- 1 x DisplayPort
– 1 x D-Sub
– 2 x HDMI
Puertos E/S,
Conectores

Conectores Internos E/S
– 1 × 4-pin CPU Fan header
– 1 × 4-pin AIO Pump header
– 3 × 4-pin Chassis Fan headers
– 1 × 24-pin Main Power
– 1 × 8-pin +12V Power
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
– 1 x USB 3.2 Gen 1
– 1 x USB 3.2 Gen 1 header
– 2 x USB 2.0 headers
– 3 x Addressable Gen 2 headers
– 2 x AURA RGB headers
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x M.2 slot (Key E)
– 1 x S/PDIF Out header
– 1 x SPI TPM header (14-1pin)
– 1 × 20-3 pin System Panel header with Chassis intrude function
– 1 x Thunderbolt? header
Panel E/S Trasero
– 1 x USB 3.2 Gen 2×2 (1 x USB Type-C®)
– 2 x USB 3.2 Gen 2 (2 x Type-A)
– 1 x USB 3.2 Gen 1 (1 x Type-A)
– 2 x USB 2.0 (2 x Type-A)
– 1 x DisplayPort
– 1 x D-Sub
– 1 x HDMI®
– 1 x Realtek 2.5Gb Ethernet
– 3 x Audio jacks
Otras
Características
Almacenamiento
– 3 x M.2 slots
– 4 x SATA 6Gb/s
Audio
– Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN
– 1 x Realtek 2.5Gb Ethernet
– Asus LANGuard
USB
– 1 x USB 3.2 Gen 2×2 (1 x USB Type-C®)
– 2 x USB 3.2 Gen 2 (2 x Type-A)
– 1 x USB 3.2 Gen 1 (1 x Type-A)
– 2 x USB 2.0 (2 x Type-A)
– 1 x USB 3.2 Gen 1
– 1 x USB 3.2 Gen 1 header
– 2 x USB 2.0 headers
Sistema Operativo
– Windows® 11 64-bit, Windows® 10 64-bit
